Universal Welder Series Godzilla Swap Engine Mounts 7.3L and 6.2L
Universal Welder Series Godzilla Swap Engine Mounts 7.3L and 6.2L
Couldn't load pickup availability
- Ships direct from the brand or supplier
- Tracking emailed when it ships
- Free fitment check before you order
This Ford "Godzilla" 7.3L motor mount kit can be used in frames of varying widths, from a narrow T-bucket to F100 pickups. The plate design is easy to assemble (if you choose the ready to weld kit), strong, and looks great. Gussets add extra support. Urethane bushings absorb vibrations. Zinc plated metric bolts and lock washers are included. These mounts come pre welded and ready to use.
This kit has also been used on the 6.2 Raptor engine.
The 3/16" frame plates will need to be trimmed to fit your frame after you establish the engine location. Filler plates to create a third side on the frame plates are included.

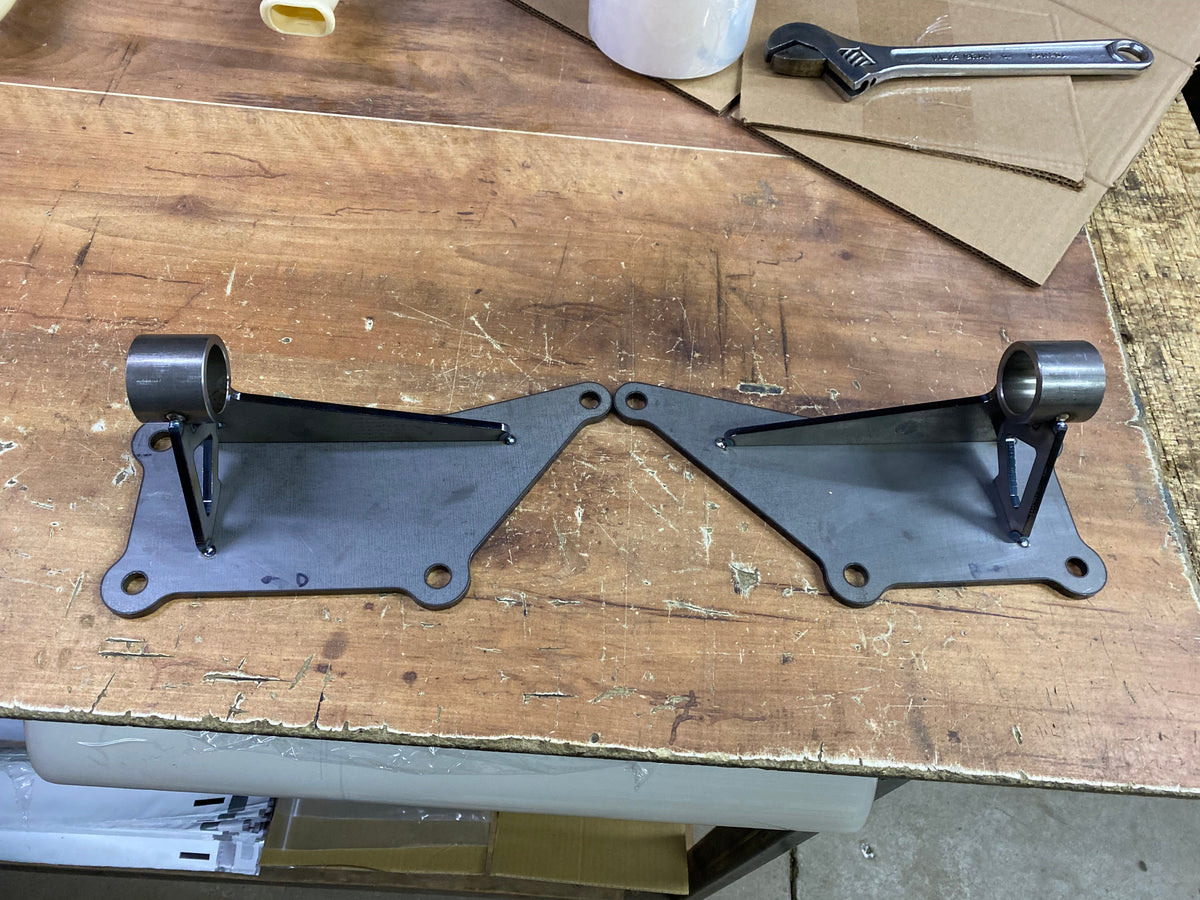

1/4" main plate and 3/16" gussets. Uses our large 1-3/4" wide urethane bushings. Welded kit is artfully tig welded as shown in main picture.
Kits include:
4x #20494 trim to fit frame plates
2x #27804 frame plate fillers
Driver & Passenger 1/4" engine plates
Urethane bushings, outer tubes and inner sleeves
3/16" gussets and top plates
All required zinc plated grade 5 hardware
Engine mount: what to know
Worn mounts cause clunks when shifting, extra vibration at idle and engine movement under load.
Fitment notes
- Engine: match the engine size and code to your vehicle; the same model often came with several engines.
- Specs, lead time and warranty come from the manufacturer and supplier and can change. The details above this guide are the latest we have.
Not sure it fits? Message us your vehicle details and we'll double-check fitment before you buy.
Ask about fitmentWhat else to plan for
- Transmission mount. Often worn at the same time as engine mounts.
