• Swivel Hose End Fitting High Flow - 45°
  • Swivel Hose End Fitting High Flow - 45°
1 2

Swivel Hose End Fitting High Flow - 45°

Swivel Hose End Fitting High Flow - 45°

$26.37 USD
$26.37 USD $26.37 USD
Sale Out of stock
Shipping calculated at checkout.
Size - Color
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

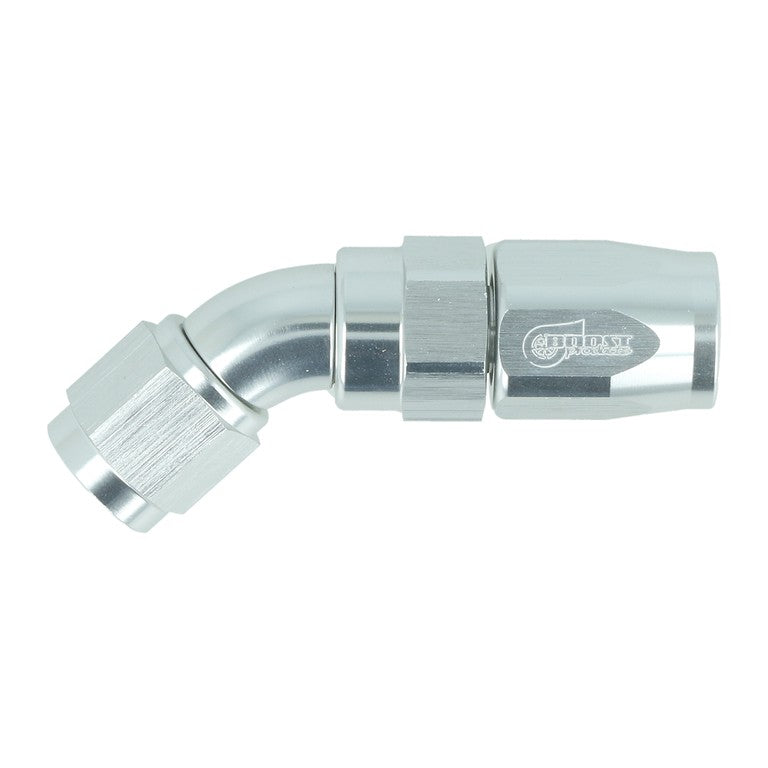

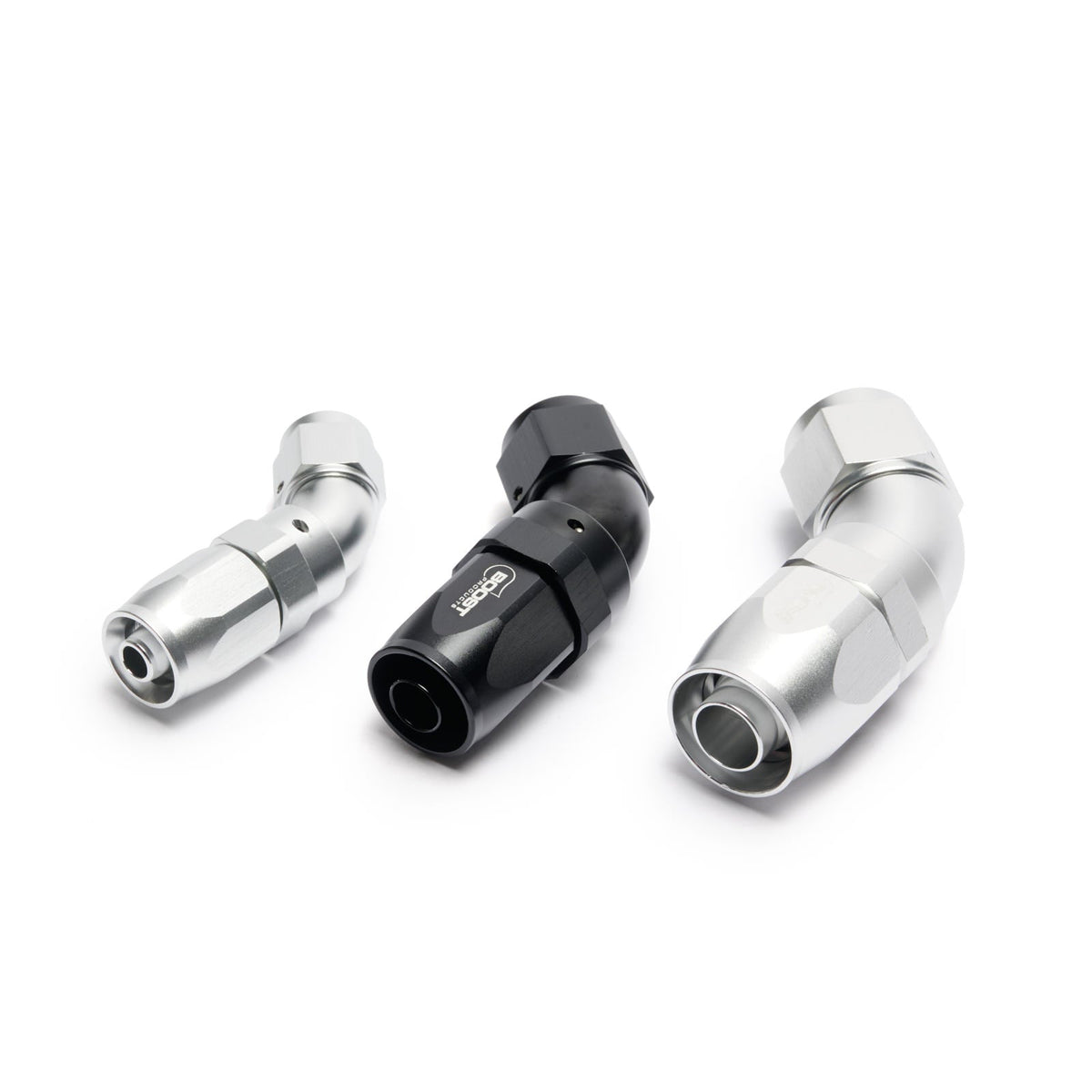

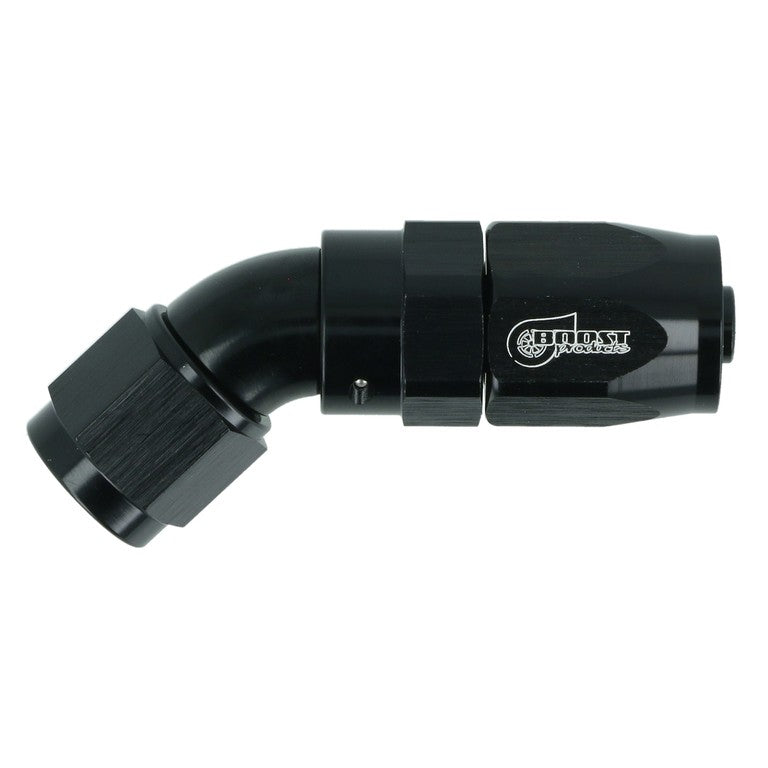

Dash swivel hose end High Flow - 45°

Aluminium fitting - 45 degree - rotatable - max flow for BOOST products hoses

High quality AN / Dash hydraulic hose connection fitting for E85 fuel, oil and pneumatic

Thread: Choose in dropbox menu
Angle: 45°
Material: Aluminium
Color: Choose in dropbox menu

BOOST products fittings, hoses and thread adapters are suitable for a wide variety of applications such as use on oil, water, and fuel lines and are resistant to E85 and methanol. The fittings and adapters are CNC machined from 6061-T6 Aluminum or stainless steel and conform to U.S. specification AN d JIC industry standards. The matching hydraulic hoses to the fittings are available in different versions (nylon or stainless steel braiding, also with reinforced insert or as PTFE version). The self-sealing system originates from the defense and aerospace industries and has been successfully used in motor sports for decades. Thanks to the unique screw connections, the hoses are tight and pressure-resistant up to 650 bar (depends on size and type) without the need for press tools. All BOOST products hydraulic hoses were E85 and Methanol resistent. The hose fittings are screwed together with the matching hydraulic hoses.

Generally recommended for turbocharger applications (oil/water lines) is -04 AN / Dash 4 for oil feed lines and -10 AN / Dash 10 for oil return lines. Other hose/pipe systems, such as water or fuel lines are best selected according to the specifications of the existing connections and manufacturers recommendations. Unlike other suppliers, BOOST products also offers rotatable fittings with the designation "swivel", they are still completely rotatable after assembly. This is essential for easy assembly and often not available from cheap suppliers. We recommend depending on the application to make at least one side rotatable (swivel).

View full details

Before you order: fitment and what to plan

Fittings and hardware connect lines, hoses and parts securely.

Fitment notes

  • Specs, lead time and warranty come from the manufacturer and supplier and can change. The details above this guide are the latest we have.

Not sure it fits? Send us your year, make, model, engine and trim and we'll check before you order.

Ask about fitment

Plan the whole job

  • Hose. Match hose size to the fitting.

More for your car: Fuel & air intake

Questions about fitting or hardware

Will this fit my car?
Check the title and details above for the vehicles and part number it is listed for. If you are not sure, contact us with your year, make, model, engine and trim and we will confirm fitment before you order.
Does it need thread sealant?
NPT threads do; AN and flare fittings seal on the flare and should go on dry.
Where do specs and warranty details come from?
From the manufacturer. Each brand sets its own specs, lead times and warranty terms, and they can change. The product details above are the latest we have.
