• ReFlex Main Injector Harness - Inline-6
  • ReFlex Main Injector Harness - Inline-6
1 2

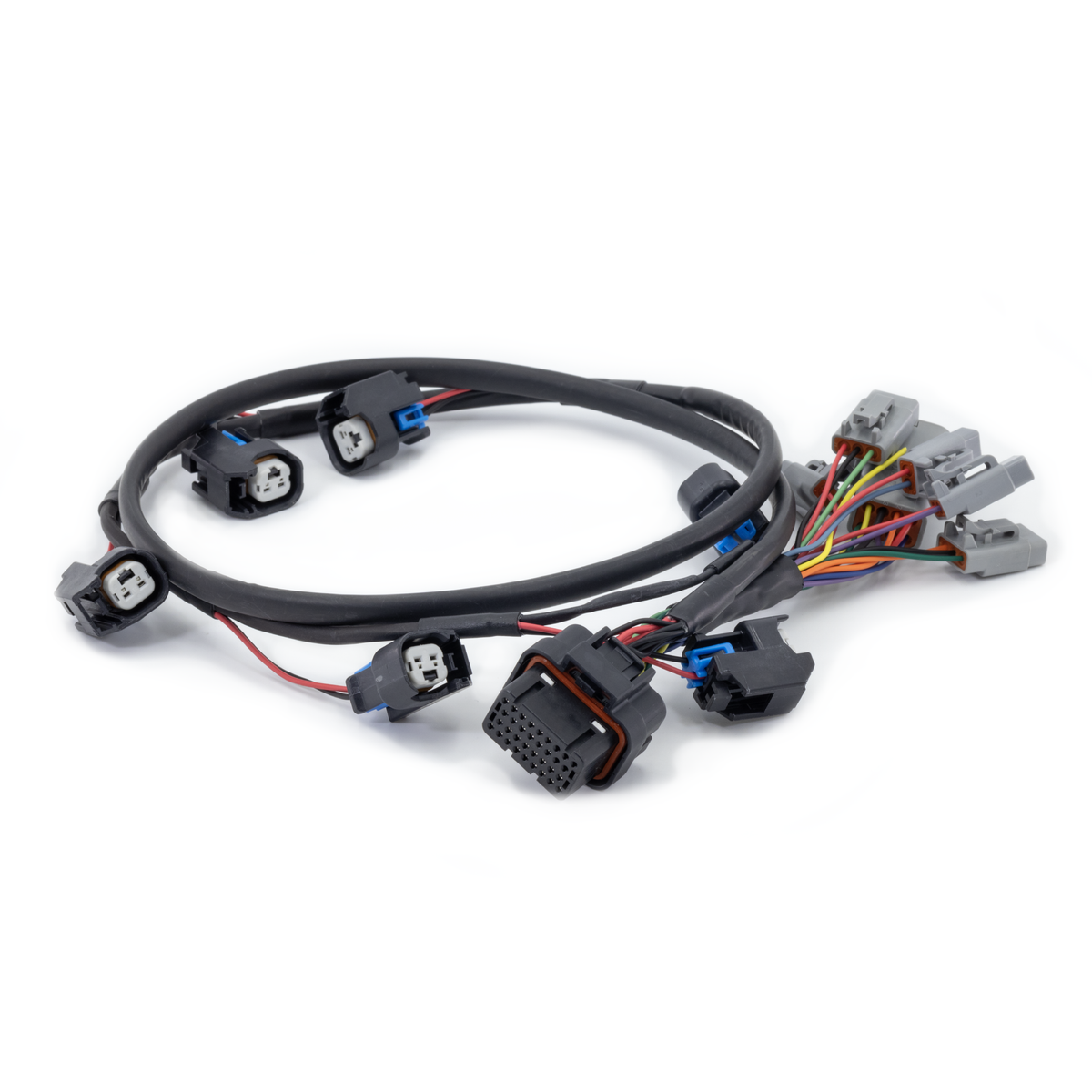

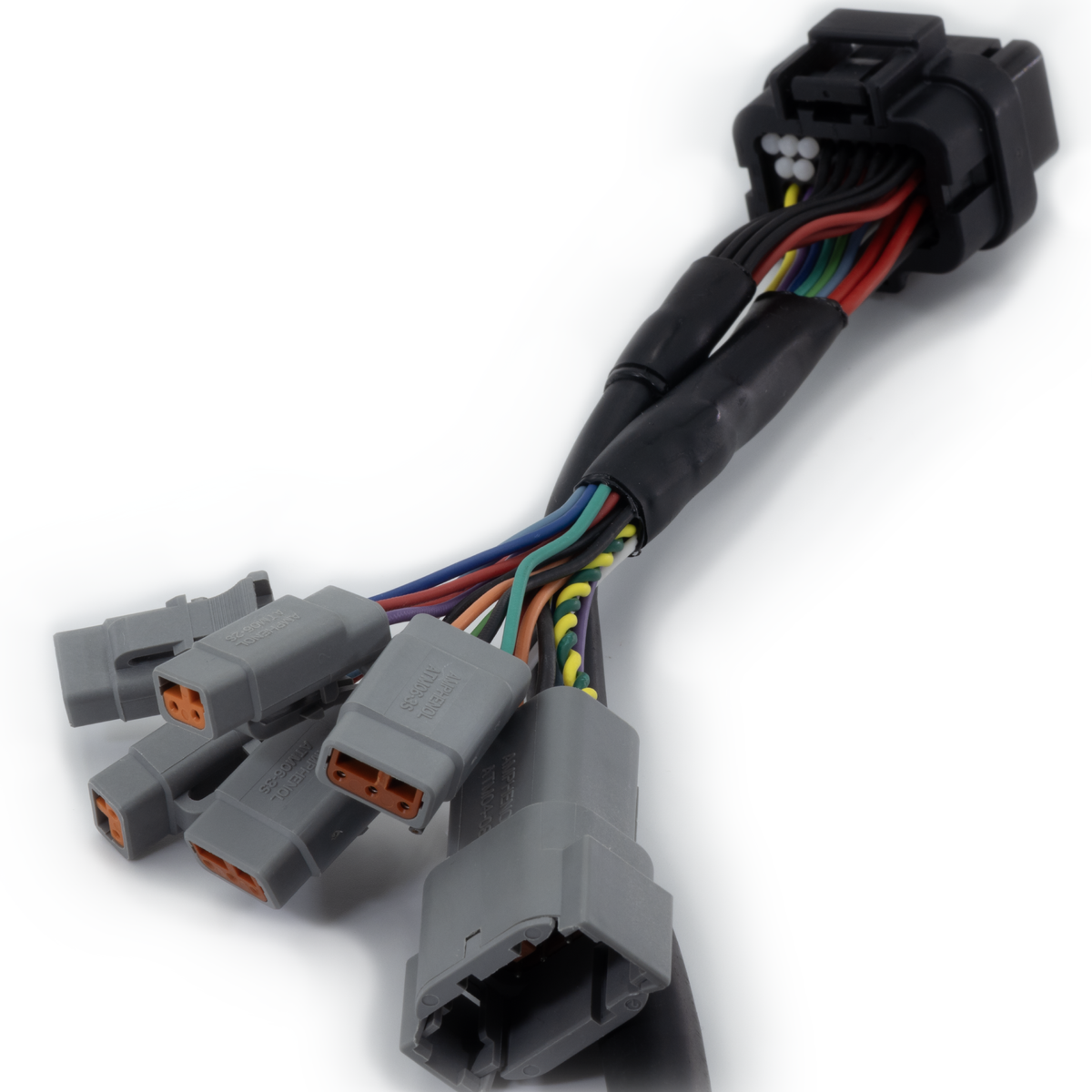

ReFlex Main Injector Harness - Inline-6

ReFlex Main Injector Harness - Inline-6

$200.00 USD
$0.00 USD $200.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

The ReFlex+ complete harness is broken into two portions. The Main Injector Harness and the Installation Harness. The Main Injector Harness consists of the following components:

  • Port injection harness for Inline-6 engines with EV6 / USCAR injector connectors
  • DTM 3-Pin connector for an ethanol content sensor connection using the ReFlex+ Plug-n-Play Ethanol Sensor Harness
  • 2x DTM 2-Pin connectors to connect to external sensors like the ReFlex+ 0-10 Bar Pressure Sensor
    • Fuel Pressure
    • Coolant Pressure
    • Exhaust Back Pressure
    • Oil Pressure
  • DTM 3-Pin connector for a 0-5v sensor
  • DTM 2-Pin connector for an auxiliary output to supply switched +12v and a low side trigger from the ReFlex+ Control Unit
  • 3x unterminated auxiliary output wires which function as low side triggers form the ReFlex+ Control Unit
  • DTM 8-Pin connector for easy connection to your choice of ReFlex+ Install Harnesses

This harness works for both the ReFlex+ and ReFlex PRO.

Perfect fitment for BMW Engine Models: N54 / N55 / S55 / B58 / S58


View full details

Before you order: fitment and what to plan

Fuel injectors spray a measured amount of fuel into the engine.

Fitment notes

  • Specs, lead time and warranty come from the manufacturer and supplier and can change. The details above this guide are the latest we have.

Not sure it fits? Send us your year, make, model, engine and trim and we'll check before you order.

Ask about fitment

Plan the whole job

More for your car: Fuel & air intake · All Fuel Injectors · Fuel & air intake

Questions about fuel injectors

Will this fit my car?
Check the title and details above for the vehicles and part number it is listed for. If you are not sure, contact us with your year, make, model, engine and trim and we will confirm fitment before you order.
Do bigger injectors need a tune?
Yes. The engine computer must be told the new flow rate.
Where do specs and warranty details come from?
From the manufacturer. Each brand sets its own specs, lead times and warranty terms, and they can change. The product details above are the latest we have.
