Focus Sim Racing Wheelbase Side Mount Pro

The Focus Sim Racing Wheelbase Side Mount Pro is a rigid, configurable mounting system designed for modern direct drive wheelbases. Built around high-strength materials, precise fitment, and useful adjustment, the Side Mount Pro provides a solid connection between your wheelbase and aluminum profile chassis without sacrificing driving-position flexibility.

Multiple versions are available to support different wheelbase mounting styles, including modular front plate compatibility and dedicated direct side mounting for select Fanatec, SIMAGIC, and MOZA wheelbases.

Every configuration also includes 45mm of integrated fore-aft adjustment, allowing you to fine-tune wheelbase position independently of your chassis uprights.

Choose Your Side Mount Pro Configuration

Different wheelbases use different mounting locations and chassis widths. Choose the Side Mount Pro configuration designed for your wheelbase and confirm that your chassis falls within the listed mounting-width range.

Focus Sim Racing Wheelbase Side Mount Pro components

Modular Edition

The Modular Edition is the most flexible version of the Side Mount Pro. It supports direct mounting for compatible Fanatec wheelbases while also working with the Focus Sim Racing front plate ecosystem for additional wheelbase compatibility.

Direct Fanatec/Simlab Compatibility:

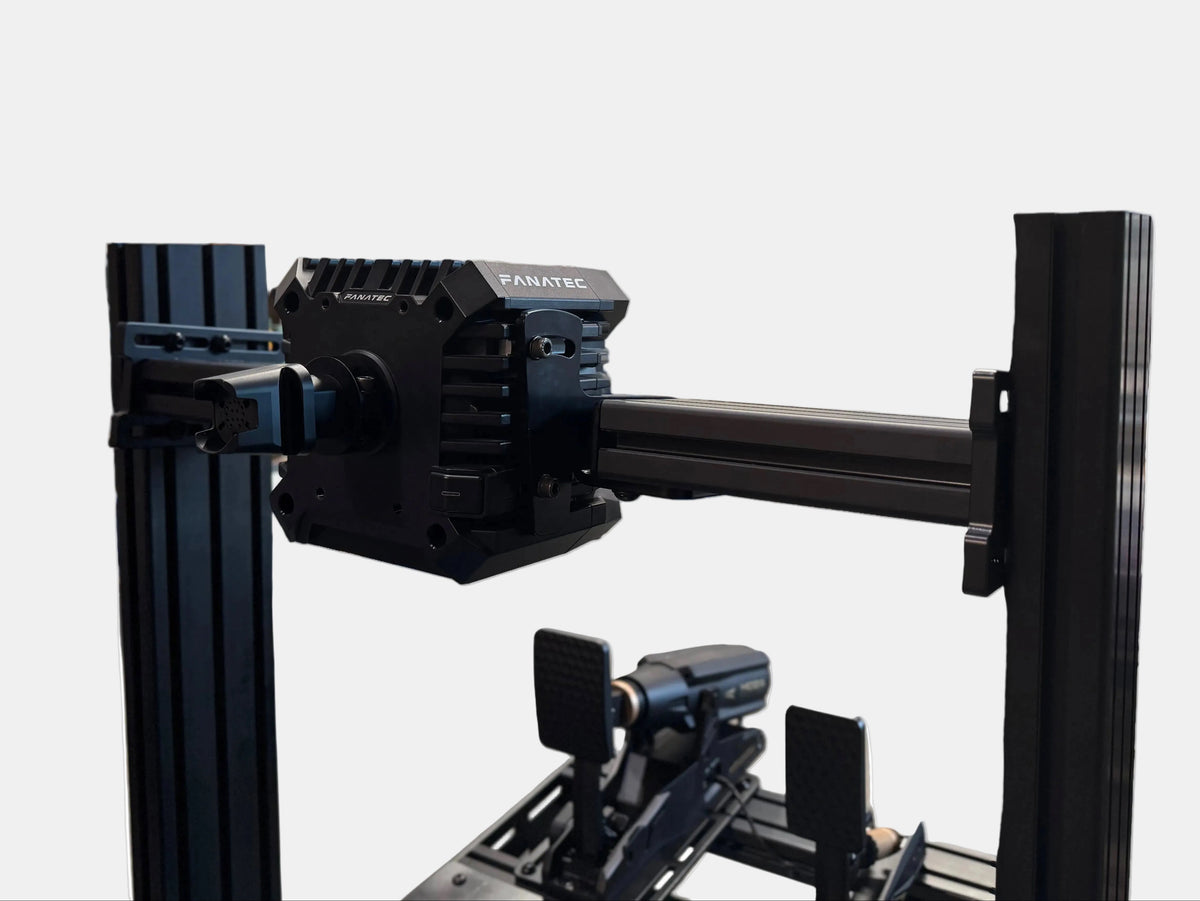

  • Fanatec Podium DD1
  • Fanatec Podium DD2
  • Fanatec CSL DD
  • Simlab DD26/39 TorqueSync

Chassis Mounting Width with Fanatec CSL DD:
545mm–625mm

Chassis Mounting Width with Focus Front Mounting Plates:
580mm–660mm

Compatible Focus front mounting plates allow the Modular Edition to support additional wheelbase platforms without replacing the complete Side Mount Pro assembly.

Focus Side Mount Pro SIMAGIC configuration

SIMAGIC Edition

The SIMAGIC Edition is a dedicated direct side mount configuration designed around compatible SIMAGIC wheelbases. The wheelbase mounts directly between the Side Mount Pro brackets for a rigid, compact installation.

Compatible Wheelbases:

  • SIMAGIC Alpha EVO Sport
  • SIMAGIC Alpha EVO
  • SIMAGIC Alpha EVO Pro
  • SIMAGIC Alpha EVO Ultra
  • SIMAGIC Alpha Mini
  • SIMAGIC Alpha
  • SIMAGIC Alpha U

Compatible Chassis Mounting Width:
520mm–600mm

Note: The SIMAGIC Edition is a dedicated direct side mount configuration and is not compatible with Focus front mounting plates.

Focus Side Mount Pro MOZA R21 Ultra and R25 Ultra configuration

MOZA R21 Ultra / R25 Ultra Edition

The MOZA R21 Ultra / R25 Ultra Edition is a dedicated direct side mount configuration engineered specifically around the mounting geometry of MOZA's high-torque Ultra wheelbases.

Compatible Wheelbases:

  • MOZA R21 Ultra
  • MOZA R25 Ultra

Compatible Chassis Mounting Width:
525mm–605mm

Note: The MOZA R21 Ultra / R25 Ultra Edition is a dedicated direct side mount configuration and is not compatible with Focus front mounting plates.

45mm Integrated Fore-Aft Adjustment

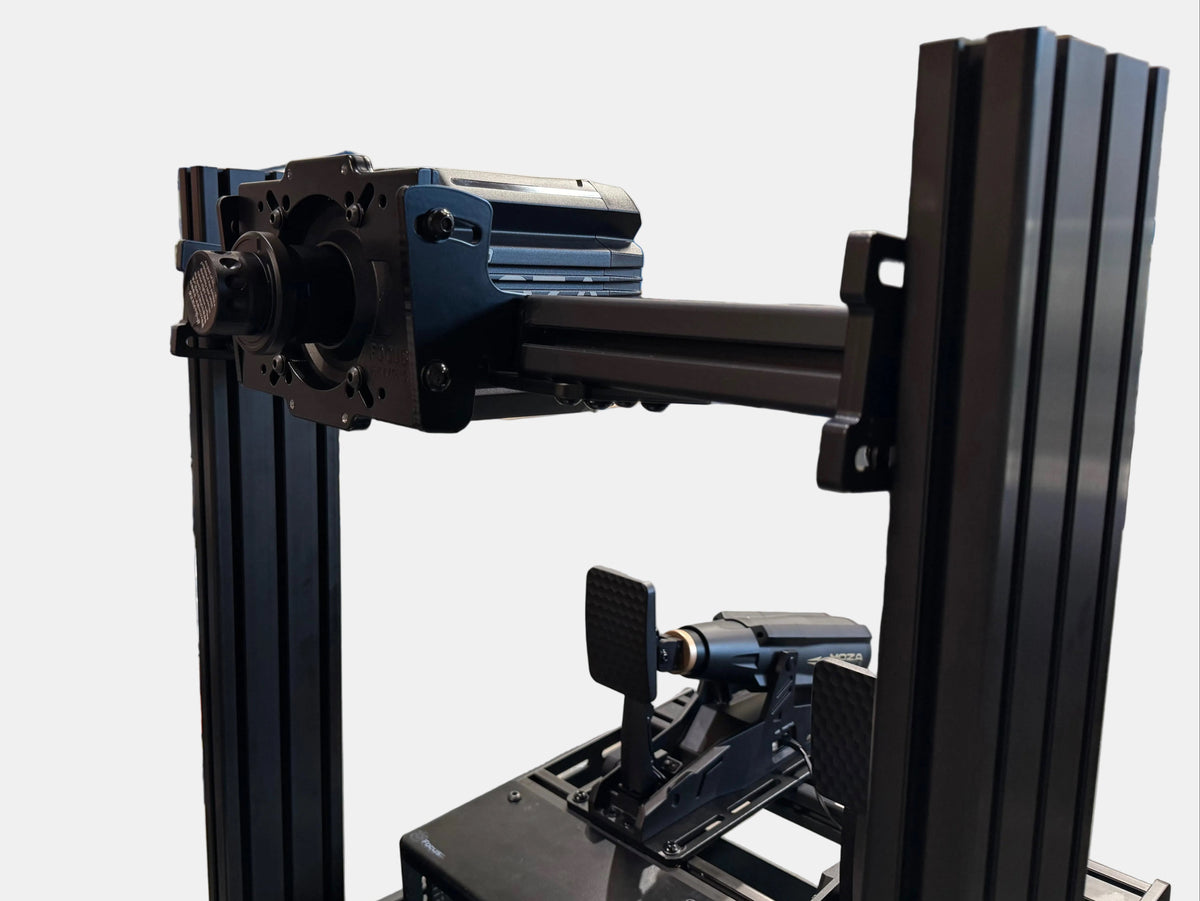

Wheelbase Side Mount Pro installed on sim racing rig

Every Side Mount Pro configuration includes 45mm of front-to-back adjustment. This allows you to move the wheelbase closer to or farther from the driver without repositioning your seat or moving the chassis uprights.

  • 45mm of fore-aft wheelbase adjustment
  • Fine-tunes steering position independently of the chassis uprights
  • Useful for adapting the rig to different drivers and seating positions
  • Slotted mounting points lock securely once the desired position is set

Wheelbase Side Mount Pro showing front-to-back adjustment

Purpose-Built Construction

Wheelbase Side Mount Pro aluminum and steel bracket components

The Side Mount Pro uses different materials where each provides the most benefit.

  • 10mm CNC-milled aluminum chassis brackets provide a strong, precise connection between the Side Mount Pro and the chassis uprights
  • 5mm laser-cut steel wheelbase brackets provide stiffness at the wheelbase mounting points where steering loads are transferred into the chassis
  • Aluminum extrusion side arms connect the chassis brackets and wheelbase brackets into a rigid mounting structure
  • Major components are finished in black powder coat for a clean, durable appearance

This hybrid aluminum-and-steel construction provides rigidity where it matters while keeping the complete assembly clean and compact.

Focus Sim Racing Side Mount Pro unassembled components

Fitment & Compatibility

The Side Mount Pro is designed for aluminum profile sim racing chassis. Because chassis widths and upright spacing vary between manufacturers, compatibility depends on both your wheelbase configuration and the distance between your mounting locations.

  • Modular Edition with Fanatec CSL DD: 545mm–625mm chassis mounting width
  • Modular Edition with Focus Front Mounting Plate: 580mm–660mm chassis mounting width
  • SIMAGIC Edition: 520mm–600mm chassis mounting width
  • MOZA R21 Ultra / R25 Ultra Edition: 525mm–605mm chassis mounting width

The Side Mount Pro may also fit aluminum profile chassis from other manufacturers when the chassis mounting width and extrusion layout fall within the range required by your selected configuration.

We recommend measuring the distance between your chassis uprights or mounting locations before ordering.

Key Features

  • Designed for direct drive sim racing wheelbases
  • Multiple configurations for different wheelbase mounting systems
  • 45mm integrated fore-aft adjustment
  • 10mm CNC-milled aluminum chassis brackets
  • 5mm laser-cut steel wheelbase brackets
  • Rigid aluminum extrusion side arms
  • Modular front plate compatibility available with the Modular Edition
  • Dedicated direct side mount configurations for compatible SIMAGIC and MOZA wheelbases
  • Wide range of supported chassis mounting widths depending on configuration
  • Black powder-coated finish

What’s Included

  • 2 × Aluminum extrusion side mount arms
  • 2 × 10mm CNC-milled aluminum chassis brackets
  • 2 × configuration-specific 5mm steel wheelbase mounting brackets
  • Complete mounting hardware including bolts and T-nuts

Built Around Your Wheelbase

A direct drive wheelbase mount needs to do more than simply hold the base in place. It needs to transfer steering forces into the chassis, maintain alignment, and give the driver enough adjustment to achieve the correct seating position.

The Focus Sim Racing Wheelbase Side Mount Pro combines rigid materials, configuration-specific mounting, and integrated fore-aft adjustment into a system designed around modern direct drive hardware.

Rigid where it matters. Configured for your wheelbase.
