• Comp Cams Camshaft, CS 265DEH-10
1 1

COMP Cams

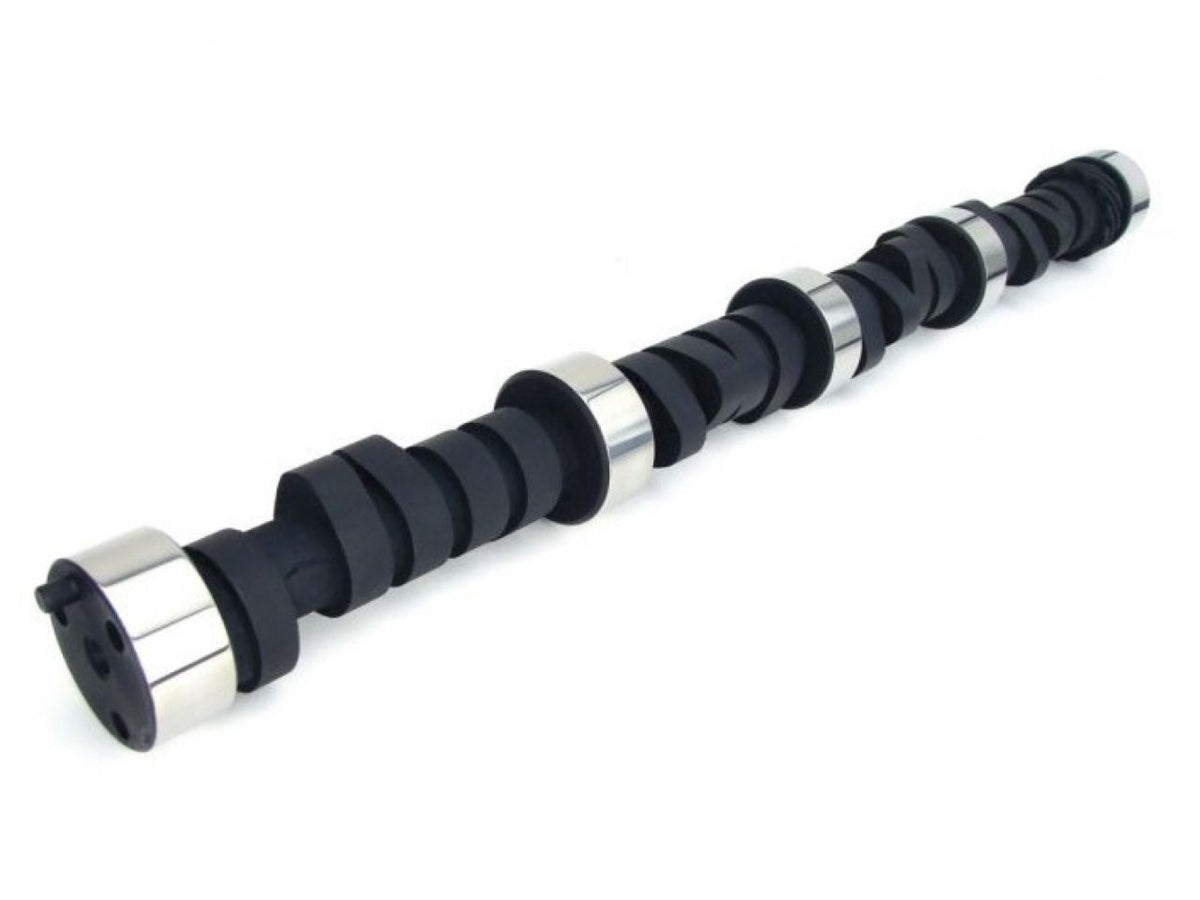

Comp Cams Camshaft, CS 265DEH-10

Comp Cams Camshaft, CS 265DEH-10

$305.73 USD
$305.73 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Camshaft, CS 265DEH-10 from COMP Cams. The part number and specifications are listed below. A cam change usually goes together with matching lifters, springs and break-in oil.

Quick facts

  • Brand: COMP Cams
  • Part type: Camshaft

Specifications

  • Part Type: Camshafts
  • Product Line: COMP Cams Dual Energy Camshafts
  • Cam Style: Hydraulic flat tappet
  • Basic Operating RPM Range: 1,500-5,750
  • Intake Duration at 050 inch Lift: 211
  • Exhaust Duration at 050 inch Lift: 221
  • Duration at 050 inch Lift: 211 int./221 exh.
  • Advertised Intake Duration: 265
  • Advertised Exhaust Duration: 269
  • Advertised Duration: 265 int./269 exh.
  • Valve Lift with Factory Rocker Arm Ratio: 0.442 int./0.465 exh.
  • Lobe Separation (degrees): 110
  • Grind Number: CS 265DEH-10
  • Valve Springs Required: Yes
  • Quantity: Sold individually

Tip: Follow the cam break-in procedure for flat-tappet cams, and use assembly lube on the lobes.

View full details

About this camshaft

A cam change usually goes together with matching lifters, springs and break-in oil.

Fitment notes

  • Specs, lead time and warranty come from COMP Cams and can change. The details above this guide are the latest we have.

Not sure it fits? Tell us exactly what you drive and we'll confirm fitment first. It's free and saves a return.

Ask about fitment

Parts that usually go with it

  • Lifters. New lifters on a new cam, especially flat tappet.
  • Valve springs. Match springs to the cam lift.
  • Timing set. A fresh timing set keeps cam timing accurate.

More for your car: Camshafts · All Camshafts · Engine

Questions about camshaft

Will this fit my car?
Check the title and details above for the vehicles and part number it is listed for. If you are not sure, contact us with your year, make, model, engine and trim and we will confirm fitment before you order.
Do I need new valve springs with a new cam?
If the cam has more lift than stock, matching springs are usually needed. Check the cam card from the brand.
Where do specs and warranty details come from?
From COMP Cams. Each brand sets its own specs, lead times and warranty terms, and they can change. The product details above are the latest we have.
