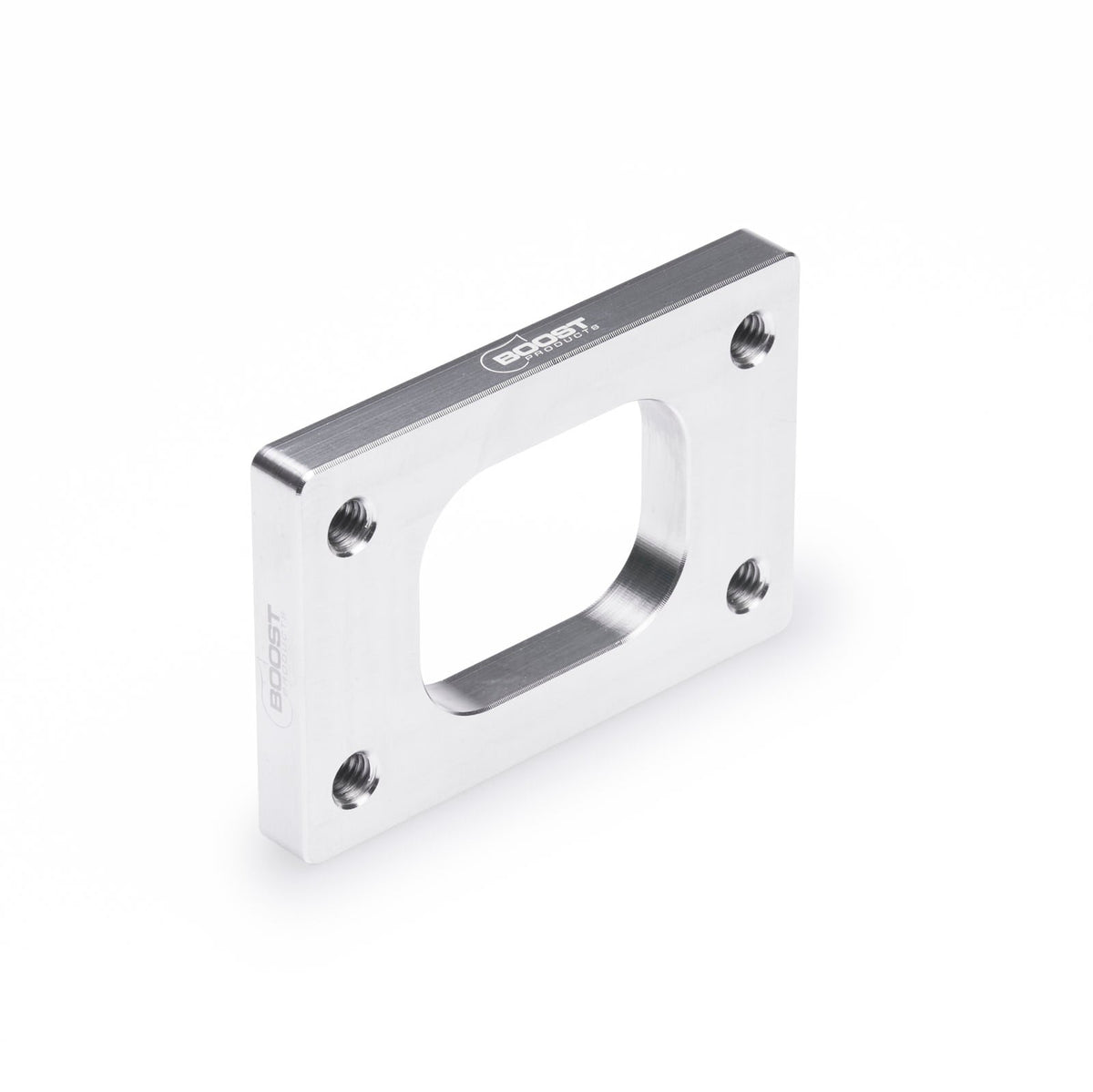

Exhaust Turbo Manifold Flange T25 / GT25R / T28 / GT28R
Turbo flange for exhaust turbo manifold construction
Premium stainless steel turbo flange with threads
BOOST products supply the flanges needed to connect the turbocharger to the exhaust manifold. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.
Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Total dimensions: 99mm x 64mm
Dimensions cut-out: 50mm x 37mm
Hole distance: 73mm x 40mm
Thread: M8x1.25
Extras / Features: Flange with threads! No holes!
For / Fits:
Turbocharger T12 to T28
Garrett T12
Garrett T15
Garrett T2 , T20
Garrett T25 , T25BB
Garrett T28 , T28BB
Garrett GT12 (4-bolt flange only)
Garrett GT15
Garrett GT20
Garrett GT25R , GT2554R
Garrett GT28R , GT2860R
Garrett GT28RS , GT2860RS
Garrett GT2871R
Garrett GT2876R , GT28/40R , GT25/40R
Garrett GT3071R-WG (T28 turbine housing only)
Garrett GT3076R-WG (T28 turbine housing only)
If you are unsure whether this flange fits to your turbocharger, just draw a sketch of your turbine entry flange and hand it to us for comparison.
