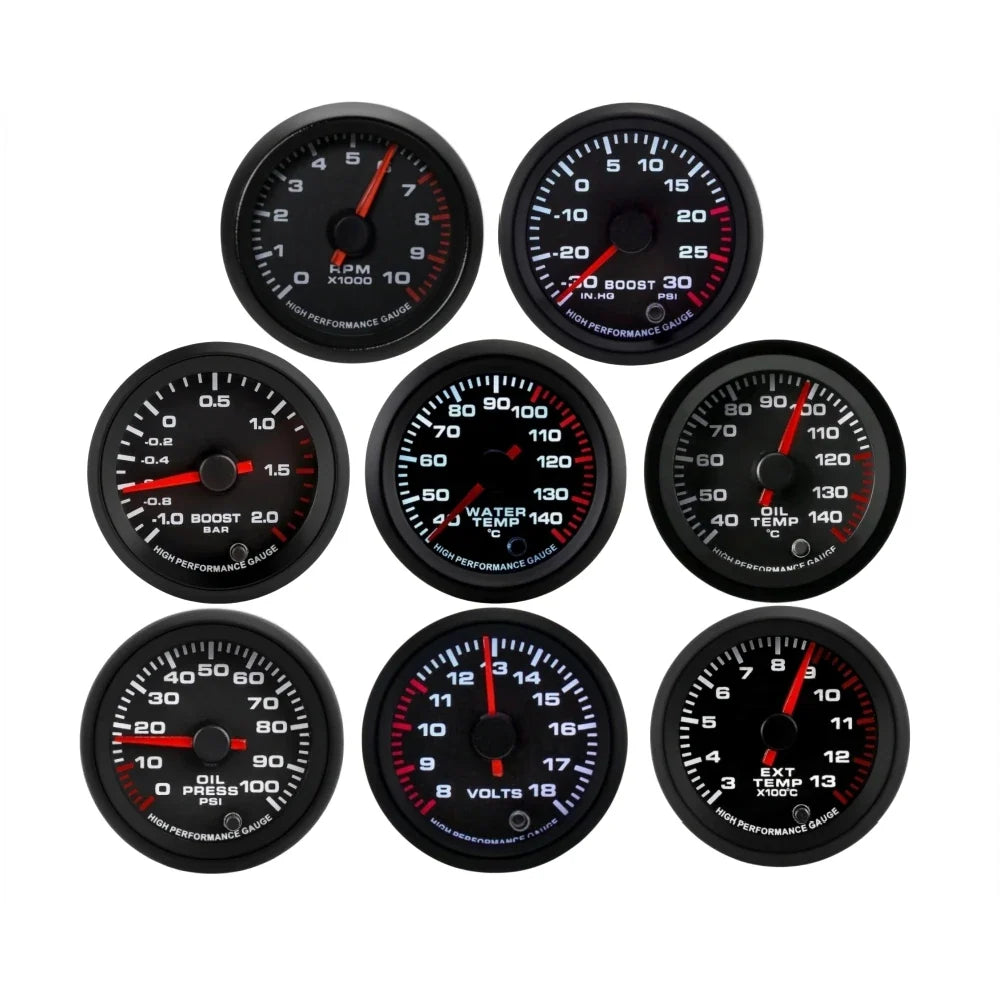

52mm 7-Color Car Gauge Set | Water Temp Oil Pressure Tachometer Boost Voltmeter EGT

Gauge. The part number and specifications are listed below. Aftermarket gauges are a common add-on for modified engines where the factory cluster shows too little.

Quick facts

Part type: Gauge

Specifications

Gauge Diameter: 52 mm / 2.0 in
Gauge Height: 53 mm / 2.1 in
Gauge Length: 57 mm / 2.2 in
Weight: 0.35 kg / 12.3 oz
Material: Metal and Plastic
Tachometer: 0 to 10,000 RPM
Boost Gauge (PSI): -30 to 30 PSI
Boost Gauge (Bar): -1 to 2 Bar

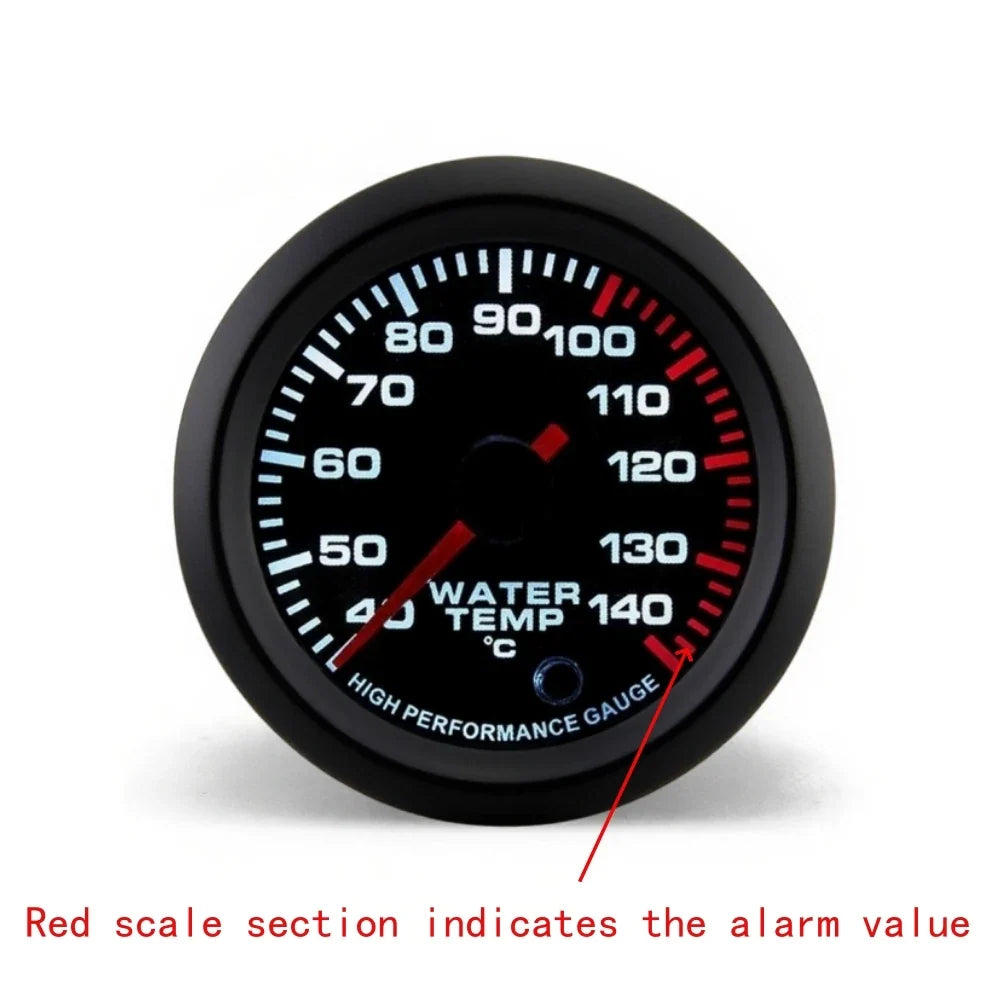

Water Temperature Gauge: 40 to 140 °C
Oil Temperature Gauge: 40 to 140 °C
Oil Pressure Gauge: 0 to 100 PSI
Voltmeter: 8 to 18 V
Air Fuel Ratio Gauge: 20:1 to 10:1
Exhaust Temperature Gauge: 300 to 1300 °C
Sensor Thread Size: 1/8ZG
Placement on Vehicle: Front

Listed fitment

12-volt gasoline vehicles and 1 to 8-cylinder engines
Who Is This For
Usage Scenario
Micro Comparison

Good to know

Note: Air-fuel ratio gauge does not include a sensor. Sensor must be purchased separately. After receiving the gauge, the pointer not showing 0 is normal. It will function correctly when powered on.

Tip: Check that the gauge comes with the sender you need, or order it separately.

Gauge: what to know

Aftermarket gauges are a common add-on for modified engines where the factory cluster shows too little.

Fitment notes

Specs, lead time and warranty come from the manufacturer and supplier and can change. The details above this guide are the latest we have.

Not sure it fits? Message us your vehicle details and we'll double-check fitment before you buy.

Ask about fitment

What else to plan for

Sender. Electrical gauges need a matching sender.

Gauge pod. A pod or cup mounts it neatly.

Questions about gauge

Will this fit my car?

Check the title and details above for the vehicles and part number it is listed for. If you are not sure, contact us with your year, make, model, engine and trim and we will confirm fitment before you order.

Does it include the sender?

Check the details below; many gauges sell the sender separately.

Where do specs and warranty details come from?

From the manufacturer. Each brand sets its own specs, lead times and warranty terms, and they can change. The product details above are the latest we have.
