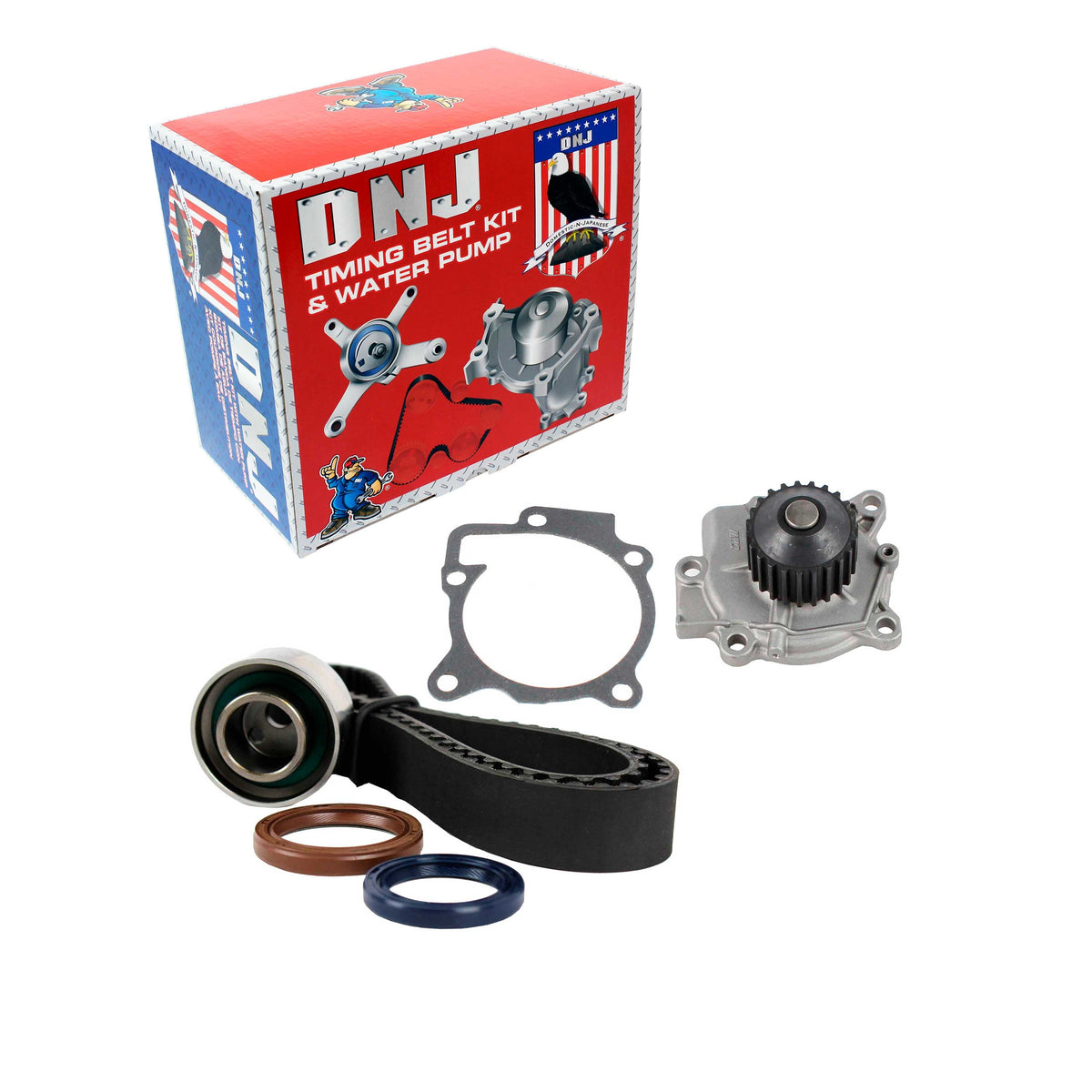

DNJ Timing Belt Kit with Water Pump 1990-1993 Geo, Isuzu 1.6L
DNJ Timing Belt Kit with Water Pump 1990-1993 Geo, Isuzu 1.6L
Couldn't load pickup availability
- Ships direct from the brand or supplier
- Tracking emailed when it ships
- Free fitment check before you order
Listed for: Isuzu 1.6LFitment notes & questions
Timing Belt Kit with Water Pump from DNJ, listed for 1990–1993 Geo and Isuzu with the 1.6L engine. A timing belt job is mostly labor, which is why tensioners, idlers and often the water pump are done at the same time.
Quick facts
- Brand: DNJ
- Part type: Timing belt
- Listed for: 1990–1993 Geo and Isuzu
- Engine: 1.6L
- Engine code: VIN 6 12V SOHC
- Part number: TBK321WP
Listed fitment
- [1990-1993] GM, ISUZU [5 Components: 1 Belt, 1 Bearing, 2 Seals, 1 Water Pump] / L4 / 1.6L / 98 SOHC 12V
Good to know
- Notes: Premium Kit, 5 Components: 1 Belt, 1 Bearing, 2 Seals, 1 Water Pump
- Warranty terms: 12 month or 12,000 mile warranty whichever comes first. Warranty must be requested by the original purchaser and is limited to the replacement of the alleged defective part(s) only.
Tip: Replace the tensioner and idler pulleys with the belt, and double-check the timing marks before the first start.
Before you order: Isuzu 1.6L timing belt fitment
The timing belt keeps the crankshaft and camshafts turning in step, so the valves open at exactly the right moment.
Fitment notes
- Listed for: Isuzu 1.6L.
- Engine: check the engine size listed against your vehicle's VIN or under-hood label.
- Specs, lead time and warranty come from DNJ and can change. The details above this guide are the latest we have.
Not sure it fits? Message us your vehicle details and we'll double-check fitment before you buy.
Ask about fitmentPlan the whole job
- Water pump. On many engines the belt drives the water pump, so replace it while you are in there.
- Cam and crank seals. Leaking front seals can ruin a new belt.
- Tensioner and idlers. A worn tensioner is a common reason belts fail early.
