Apexi N1-X Evolution Extreme Muffler, 2013+ Scion FR-S / Subaru BRZ / Toyota 86 *Discontinued
Apexi N1-X Evolution Extreme Muffler, 2013+ Scion FR-S / Subaru BRZ / Toyota 86 *Discontinued
Couldn't load pickup availability
- Ships direct from the brand or supplier
- Tracking emailed when it ships
- Free fitment check before you order
Listed for: Toyota 86 *DiscontinuedFitment notes & questions

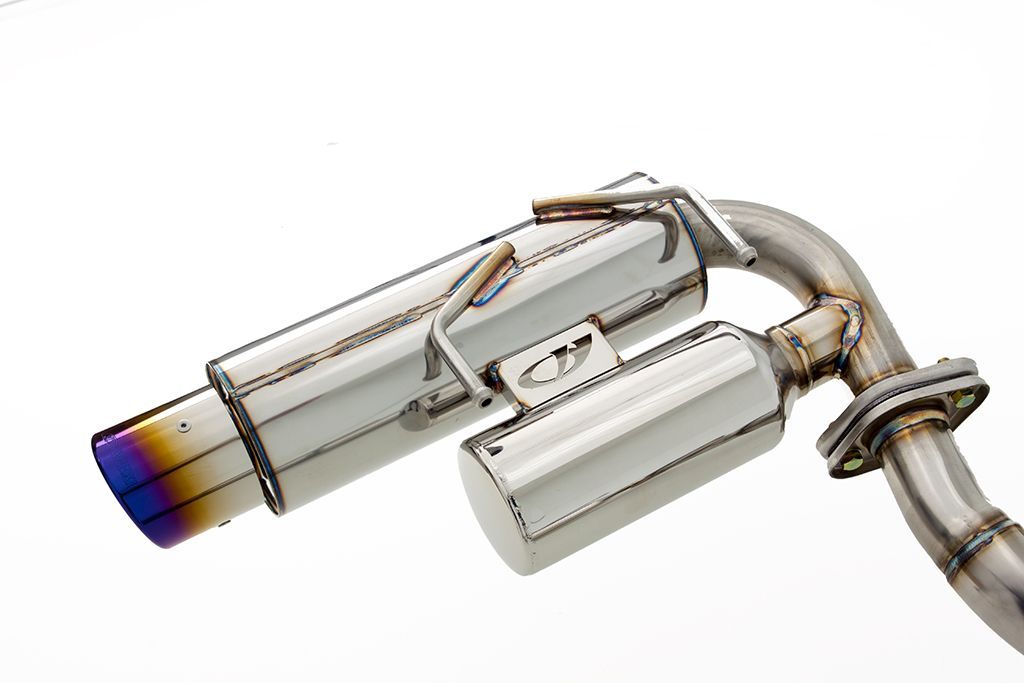

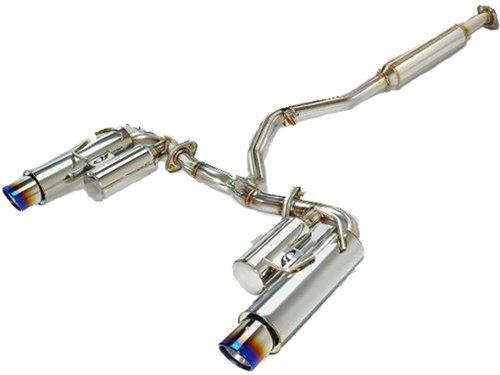

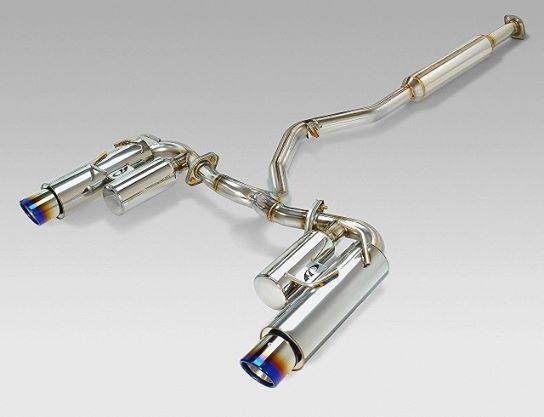

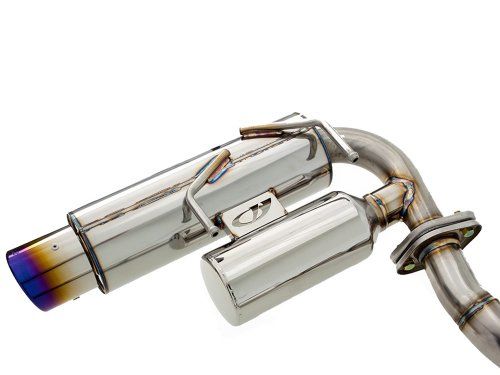

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | 164-T001J |
| Year | 2017 |
| Make | Toyota, Subaru |
| Model | 86, BRZ |
| Body Style | 2-Door Coupe |
| Engine | 4U-GSE |
| Chassis | ZN6 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 60mm. - 54mm. x 2 |
| Tip Diameter | 93mm. x 2 |
| Pieces | 3 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | Titanium |
| System Weight | 31.00 lbs. |
| Special Notes | Package Dimension: 84"x12"x20", Package Weight: 46 lbs. |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2013 - 2017 | Subaru | BRZ | Limited, Sport-tech, Base, Premium |
| 2015 | Subaru | BRZ | Series.Blue, Aozora Edition |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Base, Special Edition |
Before you order: Toyota 86 *Discontinued fitment and setup
Use the notes below to make sure this one fits your Toyota 86 *Discontinued before you order.
Fitment notes
- Listed for: Toyota 86 *Discontinued.
- Specs, lead time and warranty come from APEXi and can change. The details above this guide are the latest we have.
Not sure it fits? Message us your car's details and we'll double-check fitment with the supplier before you buy.
Ask about fitmentPlan the whole job
- Gaskets, seals and hardware. Many jobs reuse parts that should be replaced, such as one-time bolts, gaskets and O-rings. Check what the old part used.
- Fluids. Cooling, brake, fuel and drivetrain jobs often mean topping up or bleeding fluid. Have the right type for your car on hand.
