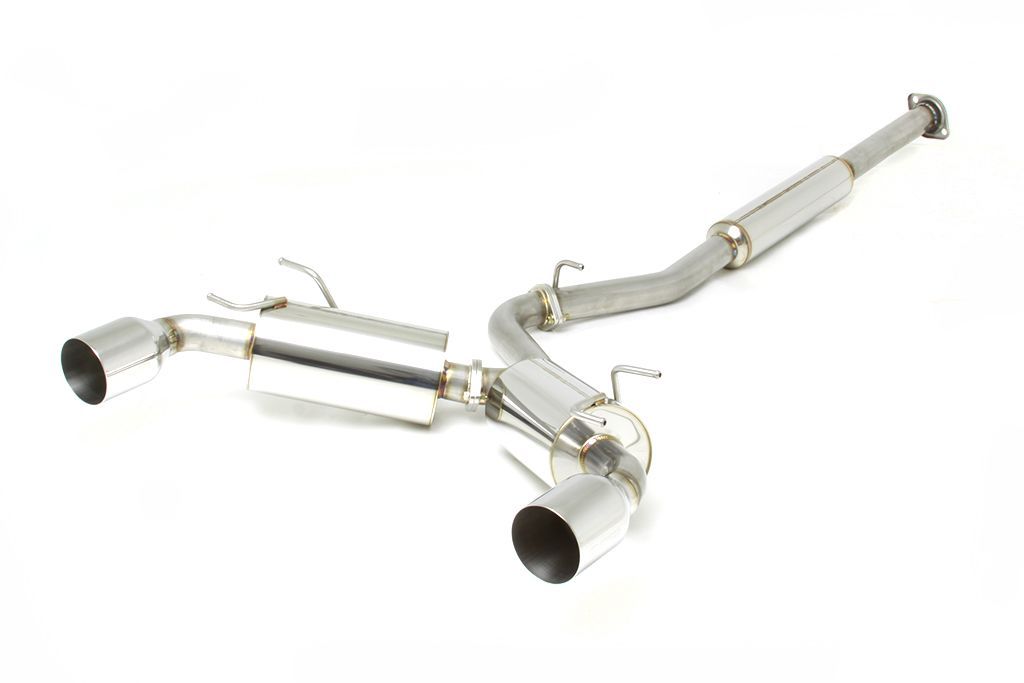

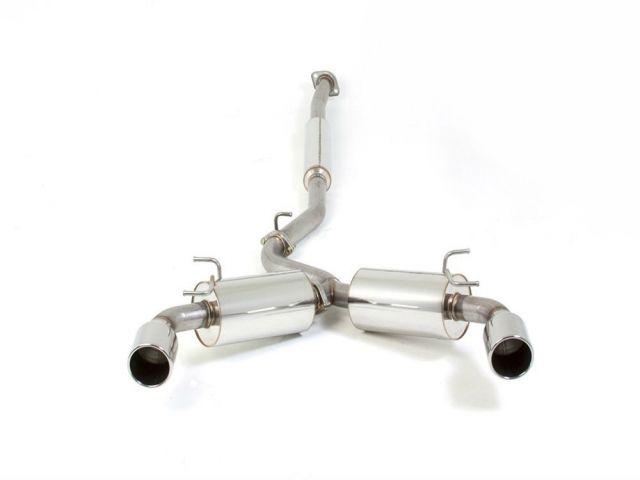

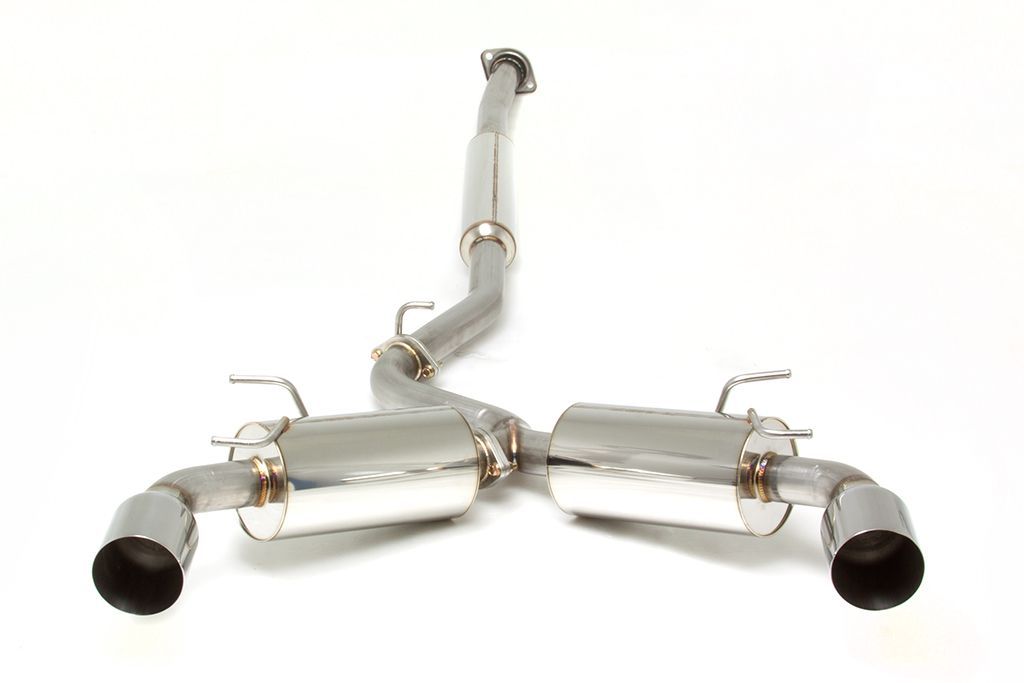

Apexi N1 Evo-R Muffler, 2013+ Scion FR-S / Subaru BRZ / Toyota 86 *Discontinued
Apexi N1 Evo-R Muffler, 2013+ Scion FR-S / Subaru BRZ / Toyota 86 *Discontinued
Couldn't load pickup availability
- Ships direct from the brand or supplier
- Tracking emailed when it ships
- Free fitment check before you order
Listed for: Toyota 86 *DiscontinuedFitment notes & questions
The N1 series muffler has become a staple of the import tuning industry. The N1 was the first of its kind to incorporate the classic angled muffler design that has became so familiar with today's street cars. Born from our involvement in the grueling N1 endurance series, the N1 exhaust system pairs a straight through design racing muffler with free flowing, mandrel bent piping (60.5mm N/A, 80mm for turbo applications). The combination has resulted in dyno proven horsepower and countless satisfied customers world wide. Designed with track use in mind, durability is of utmost importance. The polished SUS 304 stainless steel canister features robotic TIG welding for an immaculate finish and years of reliable performance.
The N1 Evolution-R combines all the racing heritage and proven performance of the original N1 muffler but raises the ante by adding light weight, fully polished stainless steel piping. This is the ultimate N1 exhaust system. Mandrel bent, full stainless steel construction provides maximum power gains and resistance to rust or other damage caused by weathering. Like the original N1, the N1 Evolution uses the minimum amount of pipe bends to allow for greater exhaust flow. The N1 Evolution was created for those who are looking for something one step further than the classic N1 design. Available only for a select amount of vehicles, the N1 Evolution stands as a brilliant testament to exhaust system fabrication. The N1 is truly THE benchmark in which others strive to duplicate.
| Bolt-On | Yes |
|---|---|
| Part Number | 192KT201 |
| Year | 2013, 2014, 2015, 2016 |
| Make | Subaru, Toyota |
| Model | BRZ, 86 |
| Body Style | 2-Door Coupe |
| Engine | FA20 |
| Chassis | ZC6 |
| Exhaust Type | N1 Evolution-R Muffler (Dual) |
| Piping Diameter | 2.5 in |
| Tip Diameter | 115mm. |
| Pieces | 3 |
| Exhaust Tip Style | Round-Single wall, Straight cut |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | SUS304 Stainless Steel |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2013 - 2017 | Subaru | BRZ | Base, Sport-tech, Premium, Limited |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Base, Special Edition |
APEXi parts for your Toyota 86 *Discontinued: what to know
This APEXi part is listed for the Toyota 86 *Discontinued. Below are fitment notes, what usually goes with it, and answers to common questions.
Fitment notes
- Listed for: Toyota 86 *Discontinued.
- Specs, lead time and warranty come from APEXi and can change. The details above this guide are the latest we have.
Not sure it fits? Send us your year, make, model, trim and drivetrain and we'll check with the supplier before you order.
Ask about fitmentParts that usually go with it
- Gaskets, seals and hardware. Many jobs reuse parts that should be replaced, such as one-time bolts, gaskets and O-rings. Check what the old part used.
- Fluids. Cooling, brake, fuel and drivetrain jobs often mean topping up or bleeding fluid. Have the right type for your car on hand.
