ACL Aluglide Rod Bearing Set Nissan KA24E/KA24DE Size: 0.75
ACL Aluglide Rod Bearing Set Nissan KA24E/KA24DE Size: 0.75
Couldn't load pickup availability
- Ships direct from the brand or supplier
- Tracking emailed when it ships
- Free fitment check before you order
Listed for: Nissan KA24E/KA24DE Size:Fitment notes & questions
ACL Aluglide Rod Bearing Set Nissan KA24E/KA24DE Size: 0.75

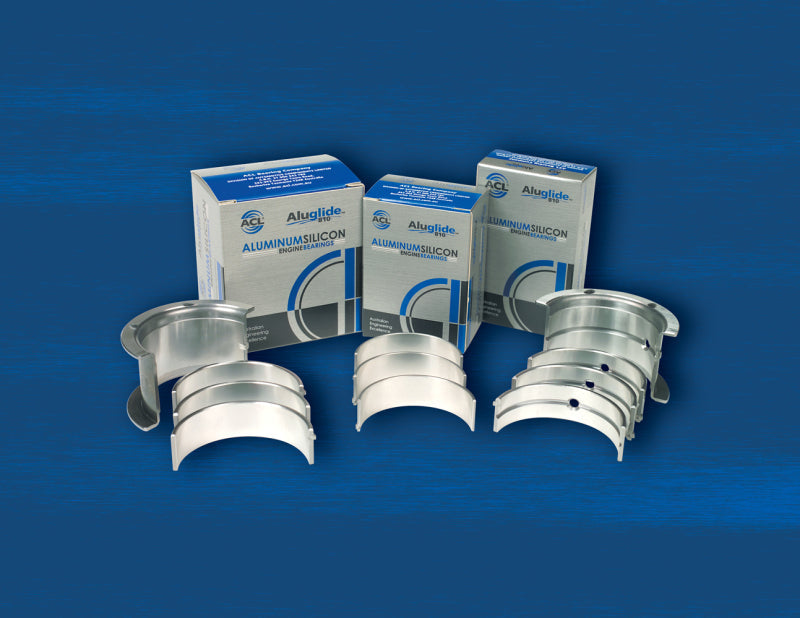

Aluglide rod and main bearings were developed for OEM engines and have the inherent physical properties perfectly suited for replacement applications. The proprietary composition is comprised of aluminum, tin and silicon. This metallurgy mix, combined with a steel backing, provides excellent characteristics such as strength, anti-seizure, anti-wear, embeddability and anti-corrosion.
Please measure your engine clearances and order bearing size accordingly to standard shaft size!
* Notes:

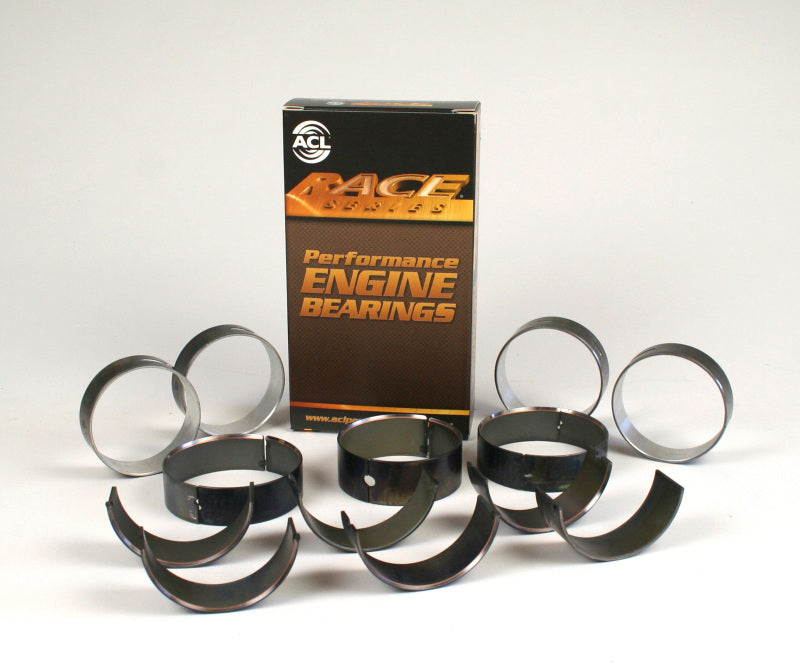

- Price is for 1 COMPLETE SET OF ROD BEARINGS FOR 1 ENGINE. Images may be generic and may not represent actual product.
| PART NUMBER | 4B2746A | |
|---|---|---|
| AVAILABLE SIZES | STD, 0.25, 0.50, 0.75, 1.0 |
|
| OIL CLEARANCE | Standard | |
| HALF TYPE | Identical Halves | |
| MATERIAL | Aluminum, Tin and Silicon | |
| MIN. STD. SHAFT SIZE | 1.9670" / 49.961mm | |
| MAX. STD. SHAFT SIZE | 1.9675" / 49.974mm | |
| MIN. HOUSING BORE | 2.0866" / 53.000mm | |
| MAX. HOUSING BORE | 2.0871" / 53.013mm | |
| MAX BEARING THICKNESS | 0.0594" / 1.508mm | |
| MAX. OVERALL LENGTH | 0.787" / 20.00mm | |
| NOTES | Fits KA24E or KA24DE engines | |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 1998 | Nissan | 240SX | Base, SE |
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1990 | Nissan | 240SX | XE |
About this part for the Nissan KA24E/KA24DE Size:
Use the notes below to make sure this one fits your Nissan KA24E/KA24DE Size: before you order.
Fitment notes
- Listed for: Nissan KA24E/KA24DE Size:.
- Specs, lead time and warranty come from ACL and can change. The details above this guide are the latest we have.
Not sure it fits? Message us your car's details and we'll double-check fitment with the supplier before you buy.
Ask about fitmentWhat else to plan for
- Gaskets, seals and hardware. Many jobs reuse parts that should be replaced, such as one-time bolts, gaskets and O-rings. Check what the old part used.
- Fluids. Cooling, brake, fuel and drivetrain jobs often mean topping up or bleeding fluid. Have the right type for your car on hand.
