Mazda3 Wiper Blade Size by Year (Chart)

This guide lists the front wiper blade sizes for every Mazda3 model year we carry, from 2004 to the newest models. Across those years the blade sizes changed 2 times, and the longest driver blade used is 26″. Find your year in the chart, then pick it on our Mazda3 wiper blades page to get the matching pair.

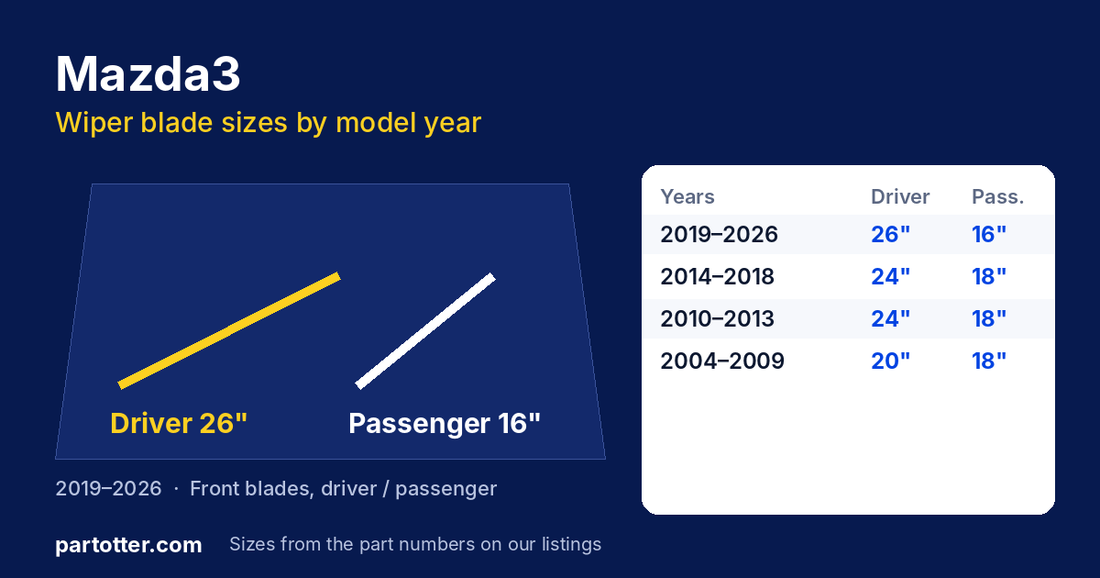

Mazda3 wiper blade size chart

Mazda3 wiper sizes by generation

• 2019–2026: The newest models in our listings take a 26″ driver blade and a 16″ passenger blade.
• 2014–2018: Different sizes: driver blade 24″ (2″ shorter than 2019–2026), passenger blade 18″ (2″ longer).
• 2010–2013: Same sizes as the 2014–2018 models: 24″ and 18″.
• 2004–2009: Different sizes: driver blade 20″ (4″ shorter than 2010–2013), passenger blade the same 18″.

Where the two sides differ, the driver blade is the longer one. Most windshields are swept further on the driver side, so fitting the wrong length can leave an unwiped strip in front of the driver or make the blades touch in the middle.

Mazda3 wiper size by year

Every model year in our listings, newest first. Sizes are front blades, driver and passenger.

How to measure your wiper blades

If you are not sure of your model year, or the car has been modified, measure the blades already fitted:

1. Lift each wiper arm away from the glass so the blade stands up.
2. Measure the rubber blade from end to end. Measure the blade, not the metal arm.
3. Round to the nearest inch. Front blades are sold in whole-inch lengths.
4. Do the same on the other side. Many cars use a different length on each side.

If the old blades are not the original ones, a previous owner may have fitted the wrong size, so compare your measurements with the table above.

Blade types and how they attach

There are three common styles of wiper blade:

• Conventional (frame) blades use a metal frame with several pressure points that hold the rubber against the glass.
• Beam blades have no frame. A curved spring-steel band inside the blade presses the rubber evenly along its length, and the low profile gives ice and snow less to cling to.
• Hybrid blades combine a frame with an aerodynamic cover, so they look like a beam blade.

Blades also have to match the end of your wiper arm. A J-hook (a U-shaped hook at the tip of the arm) is the most common, but some cars use a pin, side-lock, push-button or bayonet arm. Before you take the old blade off, look at how it attaches and take a photo so you can fit the new one the same way.

How to fit new wiper blades

1. Lift the wiper arm away from the windshield. Lay a folded towel on the glass in case the arm springs back.
2. Press the release tab or button on the old blade and slide it down and off the arm.
3. Slide the new blade onto the arm in the same position until it clicks into place.
4. Lower the arm gently onto the glass. Never let a bare arm snap back onto the windshield.
5. Repeat on the other side, making sure the longer blade goes on the driver side if the sizes differ.
6. Run the washers and wipers a few times to check both blades sit flat and wipe clean.

For a full walkthrough with tips for each connector type, read how to change windshield wipers.

When to replace your wiper blades

• Streaks, smears or a hazy film left after each wipe
• The blade skips or chatters across the glass
• Cracked, split or hardened rubber
• Squeaking on a wet windshield
• Unwiped patches in the driver’s line of sight

Rubber breaks down with sun, heat, ice and road grime, so many drivers replace their blades every six to twelve months, or before winter. Replace both front blades together so they wear evenly.

Common mistakes to avoid

• Buying by model name only. The same model often changed blade sizes between generations, so match the model year.
• Fitting the same length on both sides. The driver and passenger blades are different sizes on most years, and the longer one goes on the driver side.
• Measuring the wiper arm instead of the rubber blade.
• Letting a bare wiper arm snap onto the glass. It can chip or crack the windshield.
• Lifting frozen blades off the glass. Run the defroster first so the rubber is not torn.

Where these sizes come from

Every size in this guide comes from the part numbers of the wiper blades we list for each model year range. The two numbers in each part number are the driver and passenger blade lengths in inches. We only list front blades here; rear wiper sizes are not included. If your car has a trim or body style that differs from the table, or you are not sure, send us your year, make and model and we will check before you order.

Related parts and guides

• All Mazda wiper blades
• Wiper size finder: every make and model we list
• Colored windshield wipers: colors and how they fit
• Mazda parts by model and year

Questions

What size wipers does a Mazda3 take?

It depends on the model year. The 2019–2026 Mazda3 takes a 26" driver blade and a 16" passenger blade. Older years are in the chart above, or use our wiper size finder.

Are the driver and passenger blades the same size?

Not on every year. On the 2019–2026 models they are 26" and 16". The longer blade goes on the driver side.

Can I fit a longer blade than listed?

It is best to fit the listed sizes. A longer blade can hit the windshield frame or the other blade, and a shorter one leaves part of the glass unwiped.

How often should I replace Mazda3 wiper blades?

Many drivers replace them every six to twelve months, or sooner if they streak, skip or squeak. Sun, heat and ice all shorten blade life.

Does this guide cover the Mazda3 rear wiper?

No. These are front blade sizes only. If your vehicle has a rear wiper, measure the rear blade or contact us with your year and model.
